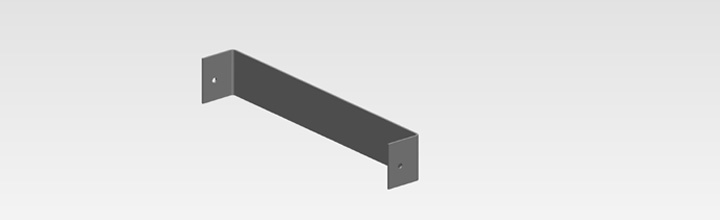

BM4/5/6-BE Blind End
Pre-Galvanized
BM4/5/6-BE G
Material & Finish
Pre-Galvanized / PG / GI – for indoor use to AS1397
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316
Zinc Plated– for indoor use to BS EN 12329
Product Details
Forms a closure for a dead-end wire basket. Furnished with hardware.
| Height | 35mm | 50mm | 100mm |
| Width | 50-1000 mm |
50-100mm | 50-100mm |

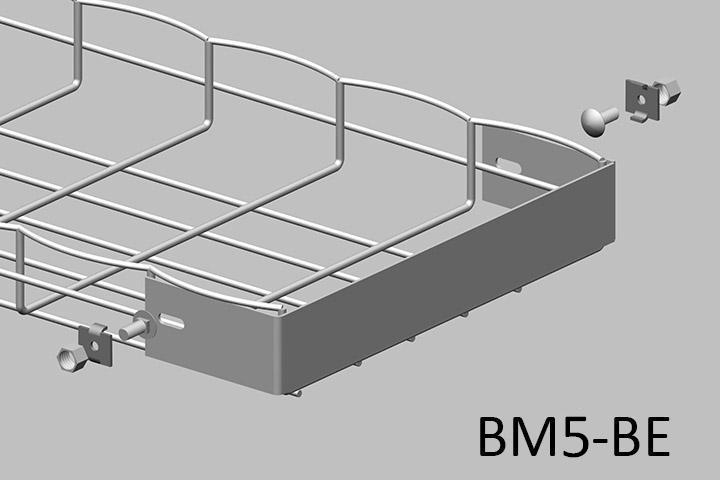

BM5-BEInstallation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM4-BE50G | 50 | 35 | 42 |
| BM5-BE50G | 50 | 42 | |
| BM4-BE100G | 100 | 35 | 42 |
| BM5-BE100G | 50 | 42 | |
| BM6-BE100G | 1000 | 42 | |
| BM4-BE150G | 150 | 35 | 42 |
| BM5-BE150G | 50 | 42 | |
| BM6-BE150G | 1000 | 42 | |
| BM4-BE200G | 200 | 35 | 42 |
| BM5-BE200G | 50 | 42 | |
| BM6-BE200G | 1000 | 42 | |
| BM4-BE300G | 300 | 35 | 42 |
| BM5-BE300G | 50 | 42 | |
| BM6-BE300G | 1000 | 42 | |
| BM4-BE400G | 400 | 35 | 42 |
| BM5-BE400G | 50 | 42 | |
| BM6-BE400G | 1000 | 42 | |
| BM4-BE450G | 450 | 35 | 42 |
| BM5-BE450G | 50 | 42 | |
| BM6-BE450G | 1000 | 42 | |
| BM4-BE600G | 600 | 35 | 42 |
| BM5-BE600G | 50 | 42 | |
| BM6-BE600G | 1000 | 42 |
