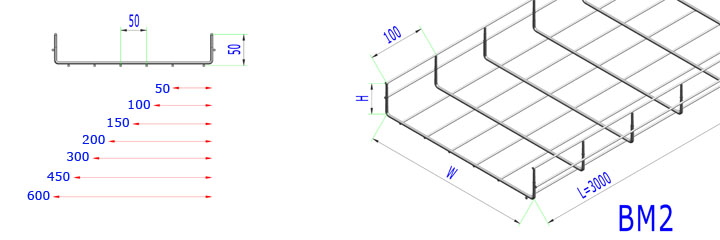

BM1/2/3 Straight Wire Mesh Cable Tray
BM1/2/3 Z
Material & Finish
Zinc Plated – for indoor use to BS EN 12329
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316
Mill / Mild /Plain Steel to ISO 4995
Product Details
| Height | 35mm | 50mm | 100mm |
| Widths | 50-1000mm | 50-100mm | 50-100mm |
| StandardLength | 3metres | 3metres | 3metres |
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Ordering Details
Sold per 3 meter length.
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM1-50Z | 50 | 35 | 3000 |
| BM2-50Z | 50 | 3000 | |
| BM3-50Z | 100 | 3000 | |
| BM1-100Z | 100 | 35 | 3000 |
| BM2-100Z | 50 | 3000 | |
| BM3-100Z | 100 | 3000 | |
| BM1-150Z | 150 | 35 | 3000 |
| BM2-150Z | 50 | 3000 | |
| BM3-150Z | 100 | 3000 | |
| BM1-200Z | 200 | 35 | 3000 |
| BM2-200Z | 50 | 3000 | |
| BM3-200Z | 100 | 3000 | |
| BM1-300Z | 300 | 35 | 3000 |
| BM2-300Z | 50 | 3000 | |
| BM3-300Z | 100 | 3000 | |
| BM1-400Z | 400 | 35 | 3000 |
| BM2-400Z | 50 | 3000 | |
| BM3-400Z | 100 | 3000 | |
| BM1-450Z | 450 | 35 | 3000 |
| BM2-450Z | 50 | 3000 | |
| BM3-450Z | 100 | 3000 | |
| BM1-600Z | 600 | 35 | 3000 |
| BM2-600Z | 50 | 3000 | |
| BM3-600Z | 100 | 3000 |
Load Rating & Deflection
| SpanM | LoadPerM(kg) | Deflection(mm) |
| 3 | 27 | 21 |
| 2.5 | 39 | 16 |
| 2 | 61 | 13 |
| 1.5 | 109 | 9 |
BM1/2/3 H
Material & Finish
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Other Material & Finish available:
Zinc Plated – for indoor use to BS EN 12329
Stainless Steel SS304 / SS316
Mill / Mild /Plain Steel to ISO 4995
Product Details
| Height | 35mm | 50mm | 100mm |
| Widths | 50-1000mm | 50-100mm | 50-100mm |
| StandardLength | 3metres | 3metres | 3metres |
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Ordering Details
Sold per 3 meter length.
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM1-50H | 50 | 35 | 3000 |
| BM2-50H | 50 | 3000 | |
| BM3-50H | 100 | 3000 | |
| BM1-100H | 100 | 35 | 3000 |
| BM2-100H | 50 | 3000 | |
| BM3-100H | 100 | 3000 | |
| BM1-150H | 150 | 35 | 3000 |
| BM2-150H | 50 | 3000 | |
| BM3-150H | 100 | 3000 | |
| BM1-200H | 200 | 35 | 3000 |
| BM2-200H | 50 | 3000 | |
| BM3-200H | 100 | 3000 | |
| BM1-300H | 300 | 35 | 3000 |
| BM2-300H | 50 | 3000 | |
| BM3-300H | 100 | 3000 | |
| BM1-400H | 400 | 35 | 3000 |
| BM2-400H | 50 | 3000 | |
| BM3-400H | 100 | 3000 | |
| BM1-450H | 450 | 35 | 3000 |
| BM2-450H | 50 | 3000 | |
| BM3-450H | 100 | 3000 | |
| BM1-600H | 600 | 35 | 3000 |
| BM2-600H | 50 | 3000 | |
| BM3-600H | 100 | 3000 |
Load Rating & Deflection
| SpanM | LoadPerM(kg) | Deflection(mm) |
| 3 | 27 | 21 |
| 2.5 | 39 | 16 |
| 2 | 61 | 13 |
| 1.5 | 109 | 9 |
BM1/2/3 S4
Material & Finish
Stainless Steel SS304 / SS316
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Zinc Plated – for indoor use to BS EN 12329
Mill / Mild /Plain Steel to ISO 4995
Product Details
| Height | 35mm | 50mm | 100mm |
| Widths | 50-1000mm | 50-100mm | 50-100mm |
| StandardLength | 3metres | 3metres | 3metres |
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Ordering Details
Sold per 3 meter length.
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM1-50S4 | 50 | 35 | 3000 |
| BM2-50S4 | 50 | 3000 | |
| BM3-50S4 | 100 | 3000 | |
| BM1-100S4 | 100 | 35 | 3000 |
| BM2-100S4 | 50 | 3000 | |
| BM3-100S4 | 100 | 3000 | |
| BM1-150S4 | 150 | 35 | 3000 |
| BM2-150S4 | 50 | 3000 | |
| BM3-150S4 | 100 | 3000 | |
| BM1-200S4 | 200 | 35 | 3000 |
| BM2-200S4 | 50 | 3000 | |
| BM3-200S4 | 100 | 3000 | |
| BM1-300S4 | 300 | 35 | 3000 |
| BM2-300S4 | 50 | 3000 | |
| BM3-300S4 | 100 | 3000 | |
| BM1-400S4 | 400 | 35 | 3000 |
| BM2-400S4 | 50 | 3000 | |
| BM3-400S4 | 100 | 3000 | |
| BM1-450S4 | 450 | 35 | 3000 |
| BM2-450S4 | 50 | 3000 | |
| BM3-450S4 | 100 | 3000 | |
| BM1-600S4 | 600 | 35 | 3000 |
| BM2-600S4 | 50 | 3000 | |
| BM3-600S4 | 100 | 3000 |
Load Rating & Deflection
| SpanM | LoadPerM(kg) | Deflection(mm) |
| 3 | 27 | 21 |
| 2.5 | 39 | 16 |
| 2 | 61 | 13 |
| 1.5 | 109 | 9 |
BM1/2/3 S6
Material & Finish
Stainless Steel SS304 / SS316
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Zinc Plated – for indoor use to BS EN 12329
Mill / Mild /Plain Steel to ISO 4995
Product Details
| Height | 35mm | 50mm | 100mm |
| Widths | 50-1000mm | 50-100mm | 50-100mm |
| StandardLength | 3metres | 3metres | 3metres |
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Ordering Details
Sold per 3 meter length.
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM1-50S6 | 50 | 35 | 3000 |
| BM2-50S6 | 50 | 3000 | |
| BM3-50S6 | 100 | 3000 | |
| BM1-100S6 | 100 | 35 | 3000 |
| BM2-100S6 | 50 | 3000 | |
| BM3-100S6 | 100 | 3000 | |
| BM1-150S6 | 150 | 35 | 3000 |
| BM2-150S6 | 50 | 3000 | |
| BM3-150S6 | 100 | 3000 | |
| BM1-200S6 | 200 | 35 | 3000 |
| BM2-200S6 | 50 | 3000 | |
| BM3-200S6 | 100 | 3000 | |
| BM1-300S6 | 300 | 35 | 3000 |
| BM2-300S6 | 50 | 3000 | |
| BM3-300S6 | 100 | 3000 | |
| BM1-400S6 | 400 | 35 | 3000 |
| BM2-400S6 | 50 | 3000 | |
| BM3-400S6 | 100 | 3000 | |
| BM1-450S6 | 450 | 35 | 3000 |
| BM2-450S6 | 50 | 3000 | |
| BM3-450S6 | 100 | 3000 | |
| BM1-600S6 | 600 | 35 | 3000 |
| BM2-600S6 | 50 | 3000 | |
| BM3-600S6 | 100 | 3000 |
Load Rating & Deflection
| SpanM | LoadPerM(kg) | Deflection(mm) |
| 3 | 27 | 21 |
| 2.5 | 39 | 16 |
| 2 | 61 | 13 |
| 1.5 | 109 | 9 |
BM1/2/3 M
Material & Finish
Mill / Mild /Plain Steel to ISO 4995
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Zinc Plated – for indoor use to BS EN 12329
Stainless Steel SS304 / SS316
Product Details
| Height | 35mm | 50mm | 100mm |
| Widths | 50-1000mm | 50-100mm | 50-100mm |
| StandardLength | 3metres | 3metres | 3metres |
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Ordering Details
Sold per 3 meter length.
| OrderingCode | W(mm) | H(mm) | L(mm) |
| BM1-50M | 50 | 35 | 3000 |
| BM2-50M | 50 | 3000 | |
| BM3-50M | 100 | 3000 | |
| BM1-100M | 100 | 35 | 3000 |
| BM2-100M | 50 | 3000 | |
| BM3-100M | 100 | 3000 | |
| BM1-150M | 150 | 35 | 3000 |
| BM2-150M | 50 | 3000 | |
| BM3-150M | 100 | 3000 | |
| BM1-200M | 200 | 35 | 3000 |
| BM2-200M | 50 | 3000 | |
| BM3-200M | 100 | 3000 | |
| BM1-300M | 300 | 35 | 3000 |
| BM2-300M | 50 | 3000 | |
| BM3-300M | 100 | 3000 | |
| BM1-400M | 400 | 35 | 3000 |
| BM2-400M | 50 | 3000 | |
| BM3-400M | 100 | 3000 | |
| BM1-450M | 450 | 35 | 3000 |
| BM2-450M | 50 | 3000 | |
| BM3-450M | 100 | 3000 | |
| BM1-600M | 600 | 35 | 3000 |
| BM2-600M | 50 | 3000 | |
| BM3-600M | 100 | 3000 |
Load Rating & Deflection
| SpanM | LoadPerM(kg) | Deflection(mm) |
| 3 | 27 | 21 |
| 2.5 | 39 | 16 |
| 2 | 61 | 13 |
| 1.5 | 109 | 9 |
